Technical Specifications
| Specification | Range & Options | Pressure Range | -1 Bar (Vacuum) to 1000 Bar |
|---|---|
| Dial Sizes | 40mm, 50mm, 63mm, 100mm, 150mm |
| Accuracy Class | ±1.0%, ±1.6% (Std), ±2.5% F.S. |
| Connection | 1/8", 1/4", 1/2" (NPT / BSP / PT) |
| Mounting | Bottom, Back, Panel Mount |
| Working Temp | -20°C to +60°C |
Product Overview
Precision Monitoring for Stable Environments

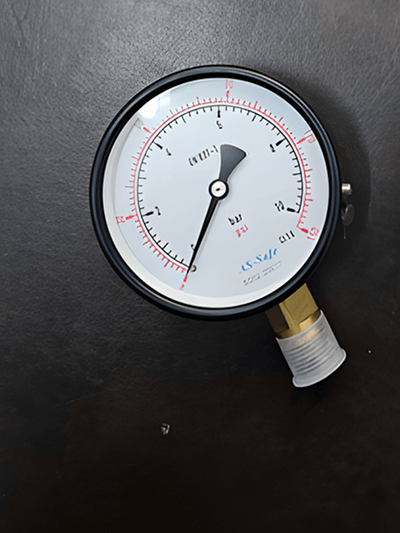

Atlantic Services provides industrial-grade dry pressure gauges specifically designed for applications where liquid filling is unnecessary or restricted. While liquid-filled gauges handle vibration, our dry gauges offer the best clarity and cost-efficiency for static systems like medical gas lines, air compressors, and pneumatic panels.
As a premier supplier in Malaysia, we stock a comprehensive range of Black Steel and ABS case gauges (Bar & PSI) ready for immediate dispatch to your facility.
Why Source from a Certified Calibrator:-
Buying a gauge is easy; ensuring it stays accurate is the challenge. As an ISO/IEC 17025 accredited pressure gauge calibrator, Atlantic Services bridges the gap between supply and safety. Every unit sent to our Malaysia-based clients undergoes a rigorous multi-point verification process.
Why Choose Atlantic Services?
We don’t just sell boxes; we certify accuracy. As an ISO/IEC 17025 accredited calibration laboratory based in Singapore and serving Malaysia, we ensure you don’t risk your safety with unverified equipment.
- Pre-Checked Quality: We inspect every gauge to meet strict industrial tolerances.
- Ready for Industry: Perfect for DOSH-compliant setups requiring standard safety checks.
Key Features
- Cost-Effective: The smartest choice for standard pressure monitoring.
- Clear Readability: High-contrast (Black on White) dial for zero-error reading.
- Versatile: Handles air, water, oil, and non-corrosive gases easily.
- Built Tough: Choose from Black Steel or Stainless Steel 304 casing.
Applications
- Pneumatic Control Systems
- Air Treatment & Compressors
- Medical Gas Regulators
- General Factory Automation
Application Suitability Guide
Before installing a standard dry gauge, review these environmental factors to ensure long-term calibration accuracy and safety for your Malaysian facility:
- Vibration Levels: High vibration from pumps causes needle flutter that destroys calibration accuracy. If vibration is present, use an Oil-Filled Gauge instead; dry gauges are strictly for static pneumatic lines.
- Contamination Risks: In food processing or medical gas lines, dry gauges are the superior choice because there is zero risk of glycerin leakage.
- Ambient Humidity: For outdoor installations in high-humidity areas like Port Klang, ensure you select our Stainless Steel 304 casing to prevent external corrosion.
- Pulsation Issues: For systems with rapid pressure spikes, we recommend installing a snubber to protect the internal Bourdon tube from permanent damage.
Frequently Asked Questions
Common technical queries regarding dry pressure gauges and calibration standards in Malaysia.
For general industrial monitoring, we recommend annual calibration. However, for DOSH-compliant machinery, safety officers often require a validity period of 6 months to ensure the gauge remains within the strictly permitted error margin.
Yes. As an ISO/IEC 17025 accredited pressure gauge calibrator, every unit we supply can include a traceable calibration certificate valid for JKKP safety inspections across Malaysia.
Dry gauges lack the internal fluid damping of oil-filled models. A single drop can misalign the Bourdon tube mechanism. We recommend performing an immediate “Zero-Point Check” or sending it to our lab for verification before reusing it.
Downloads & Support
Don’t let your readings drift. Our laboratory provides ongoing support as your primary pressure gauge calibrator, offering re-certification services to keep your plant compliant with international safety standards.
